Description
xCan2Cluster is the perfect module for converting CAN-based ECUs (like ME7.x, EDC, Haltech, Fueltech, EMU, etc.) into traditional outputs that your iconic MK1 (or MK2!) Volkswagens prefer. With a selectable output voltage to suit both 5V and 12V systems, the module will interpret the CAN signals and convert them into logical outputs for your cluster. This includes RPM, Speed, EML, EPC, as well as DSG paddle inputs. Supports GPS as an additional option—although the PCBs are populated, it’s just an additional module at low cost.

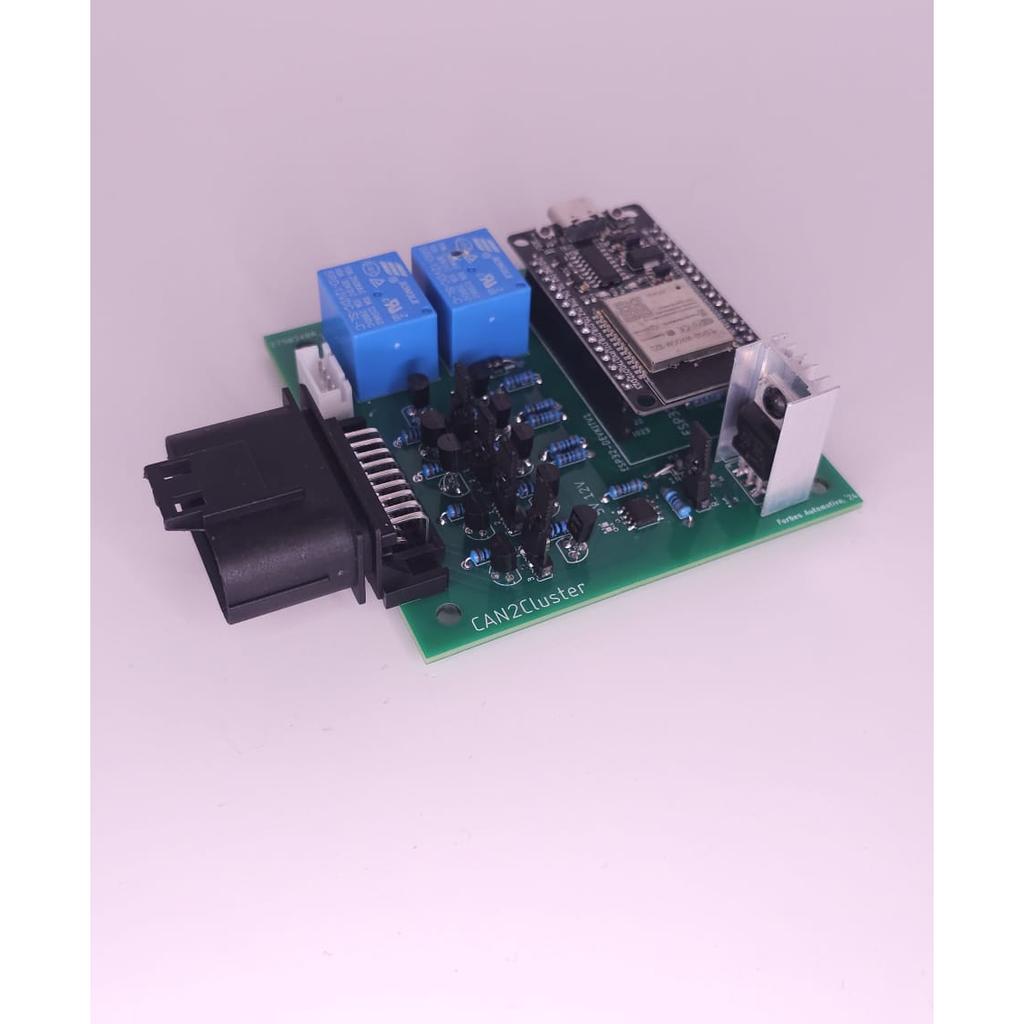

The Can2Cluster module will come in a grey enclosure, the image shows what's inside the enclosure.
Main Features:
- 5V or 12V selectable output to pulse RPM & Vehicle Speed
- 5V or 12V selectable output to show EML & EPC lights
- EML or EPC light can be used as a shift light with programmable setpoints
- Supports coil-based ignition systems (like MK1 & MK2 - not to mention other vehicle groups entirely!)
- Supports DSG paddle (or other ground-trigger switches), which output the CAN data back to the OEM controller, allowing retrofitted paddles to work!
- Supports additional relay output - typically used for reverse lights on a DSG gearbox (on selected model!)
- Supports GPS for speed - ideal for vehicles without any speed sensor at all!
- Small footprint
- Entirely open source
Note - MK1 & MK2 are analog based speed type clusters with a physical cable - this module will support this with an add-on module (which is in development). Output for speed is 5v/12v ONLY.
*Default does not come with GPS or reverse output(!).
