OpenHaldex Tech Spec
xThe Forbes Automotive OpenHaldex C6 Controller
The Forbes Automotive OpenHaldex C6 Controller gives you full control over the Haldex 4Motion system, offering 6 switchable modes.
How It Works
On 4Motion cars, the Haldex system waits until it detects ‘slip’ from the front wheels, at which point it engages the clutch-pack within the Haldex unit to drive the rear wheels. On high-performance cars, it may be advantageous to force specific modes to suit the driving style required at the time.
The OpenHaldex C6 controller is based on an ESP32 with WiFi capability and is positioned between the Powertrain ECUs and the existing Haldex module. It is WiFi-enabled and can be controlled using:
- Push buttons on the device
- External button
- Via CAN
- Your phone's browser
Technical Details
The OpenHaldex module takes the existing CAN-BUS signals coming from the ECU to the OEM Haldex module and adjusts them to suit the required mode. There is a standalone mode, which means that the OpenHaldex module can be used on conversions or cars without working CAN-BUS. This will mimic OEM CAN-BUS signals to the Haldex pump, allowing it to operate as if there were an original ECU in place.
Available Modes:
- Stock (*if provided with OEM CAN signals)
- FWD
- 50/50
- 60/40
- 75/25
- Expert

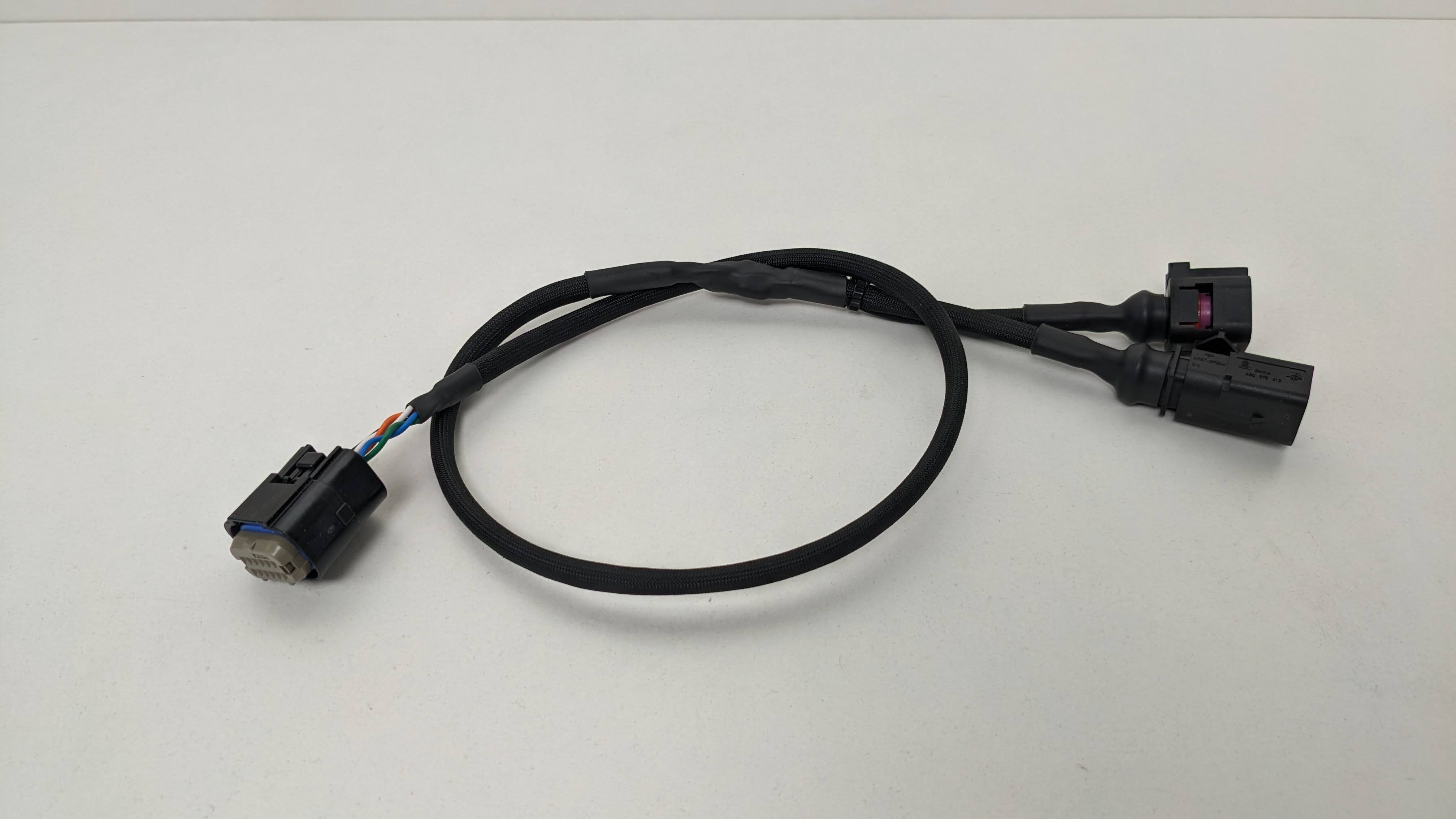

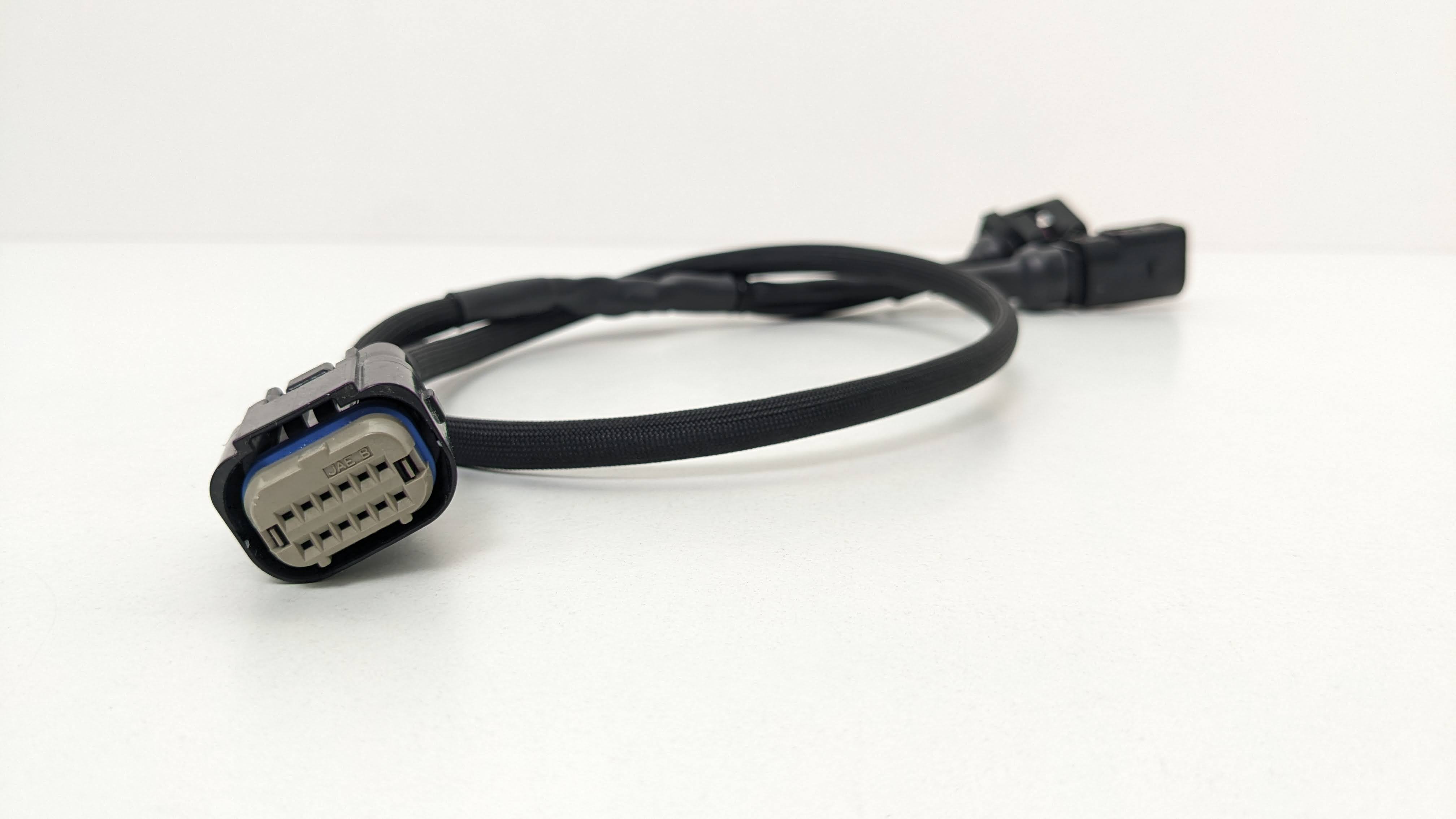

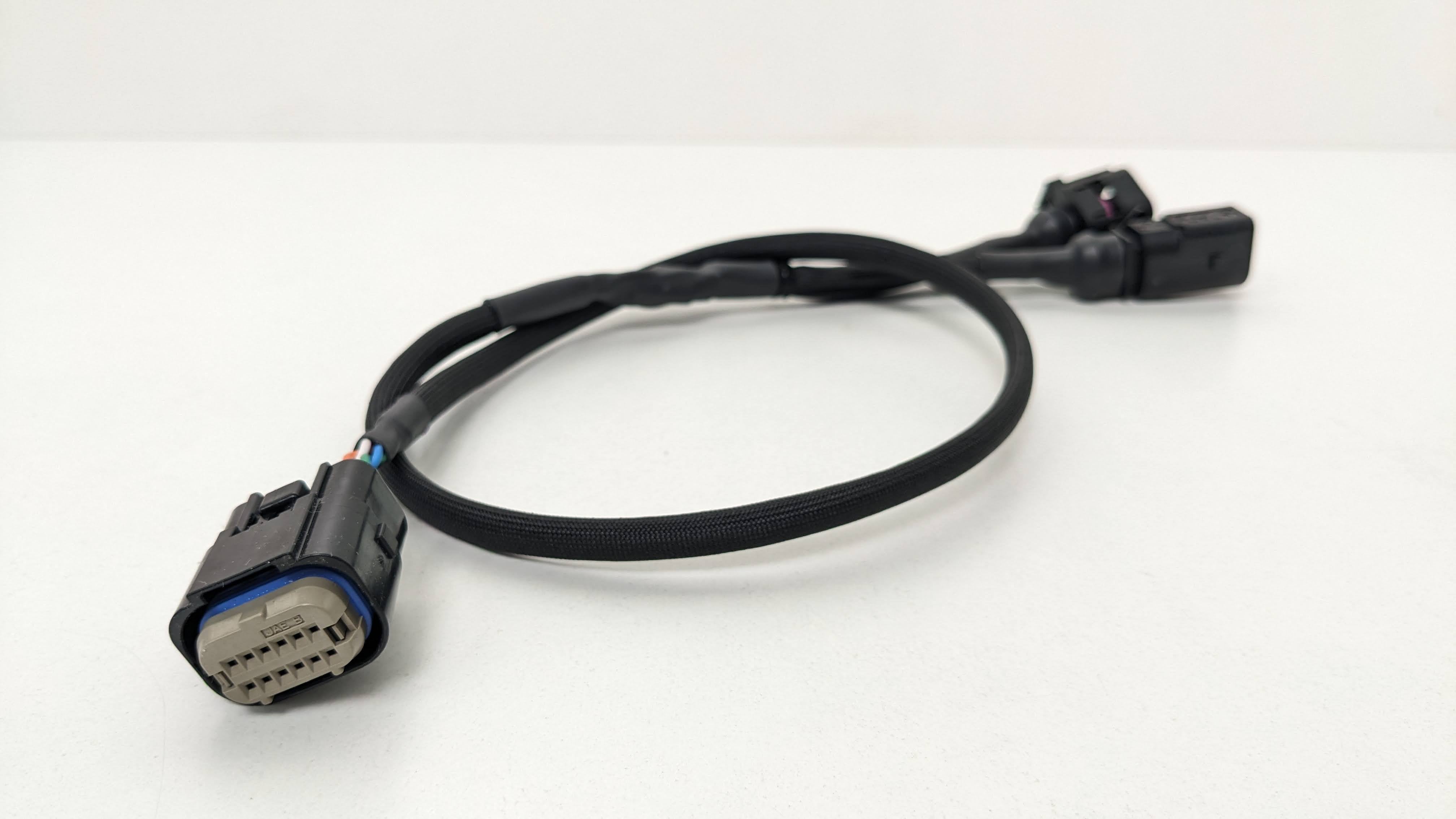

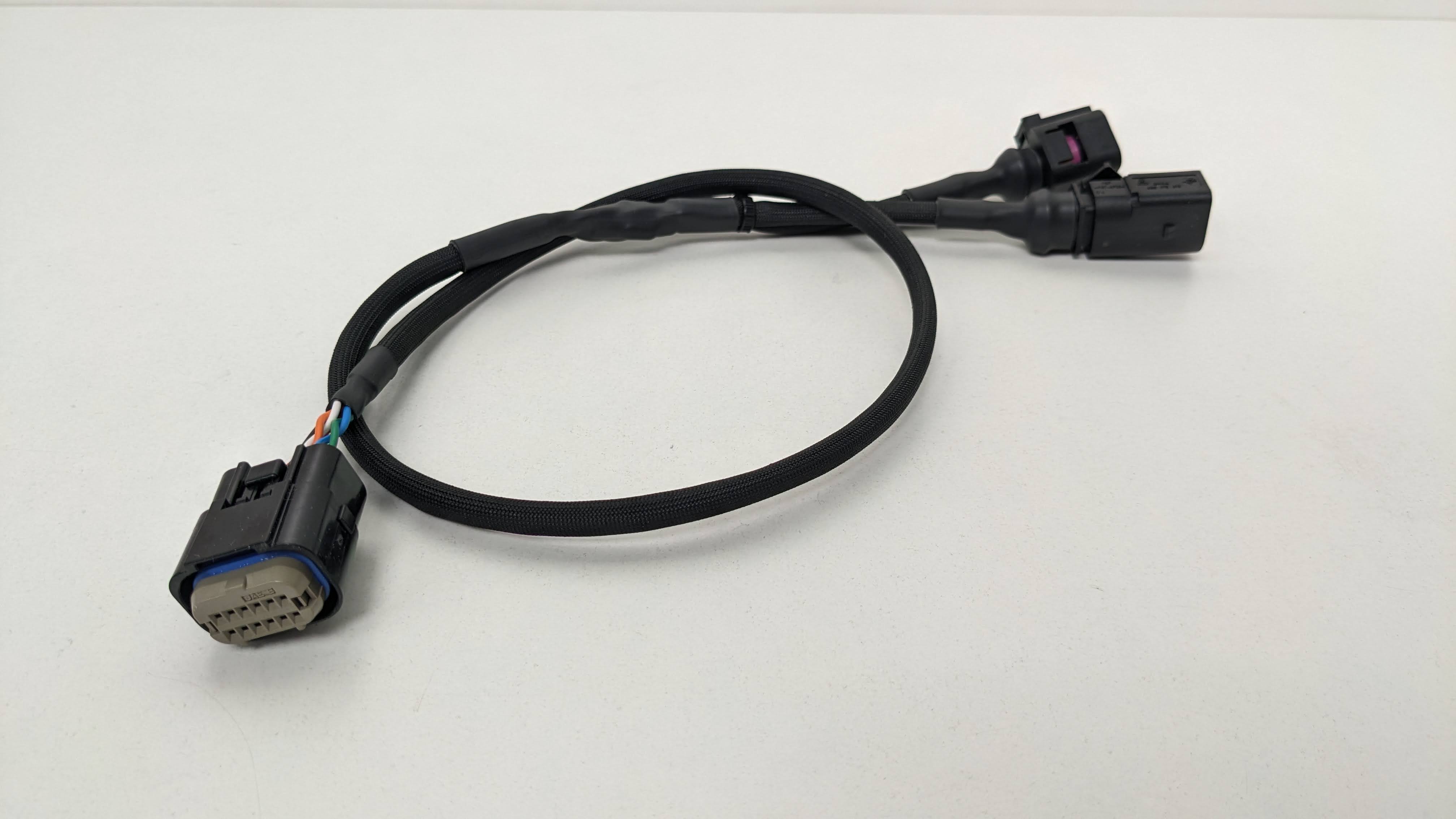

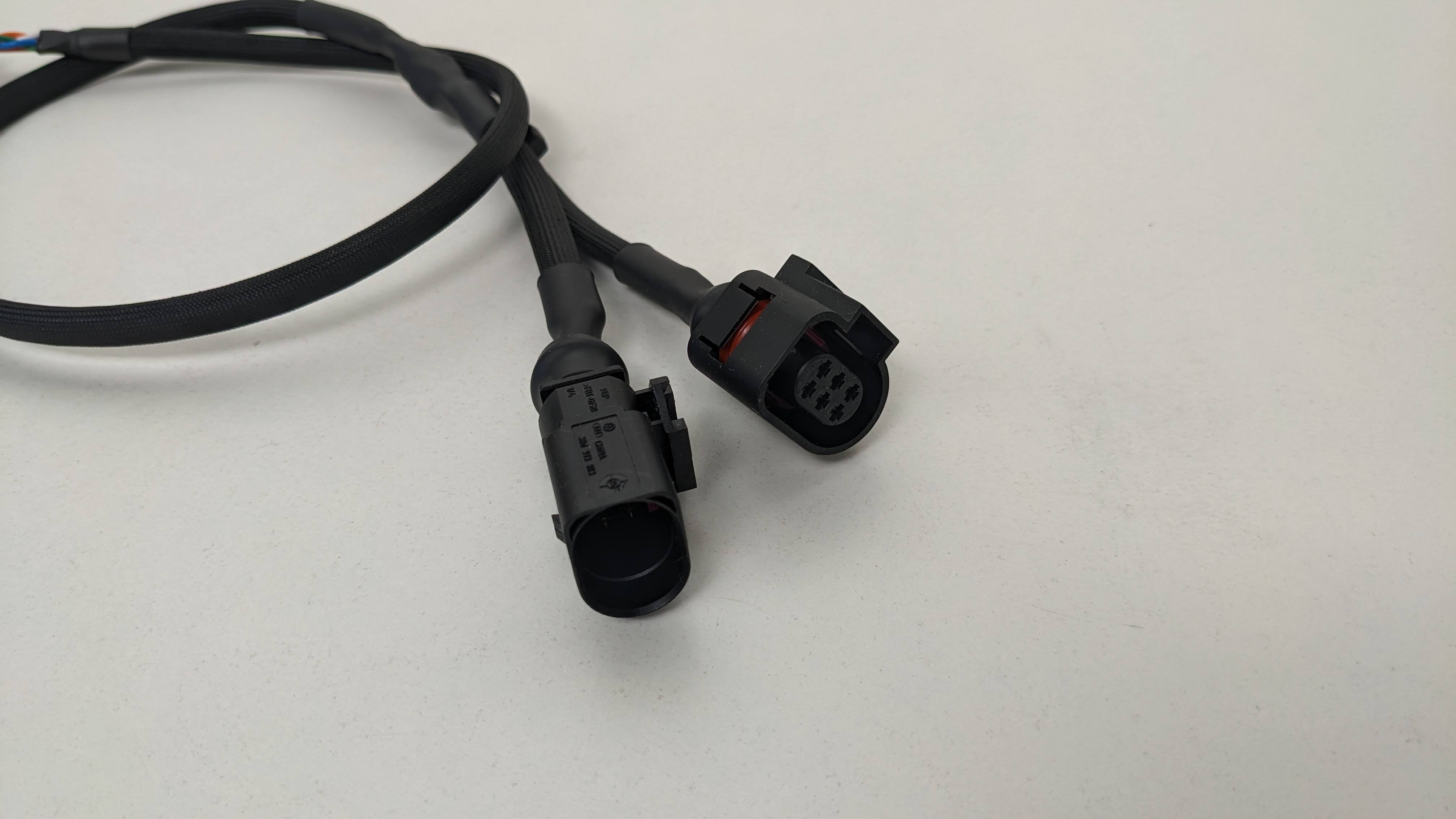

Optional Plug & Play Harness
An optional Plug & Play harness is available. This allows the utilisation of the OEM plugs, which means the module can be removed at any time! Click here for more information.
*Sold separately
Haldex Versions & Compatibility
xHaldex Versions & Compatibility
Not sure which Haldex generation your car runs? We’ve built a full compatibility checker with drop-downs by brand and model.
Open the Haldex compatibility checker
If your car isn’t listed, send us your model and year — we’re happy to help confirm it.
