Gen1 Haldex Controller – Ultimate Control for Your OEM Haldex System
THIS IS A BUNDLE THAT INCLUDES THE CONTROLLER, HARNESS AND SCREEN AT A DISCOUNTED PRICE.
Note: This product is specifically designed for Gen1 Haldex modules only. Gen4 is currently in development.
Made to Order: Please allow a lead time of 2 weeks for processing.
Unlock the full potential of your Haldex system with our Gen1 Haldex Controller. This advanced controller gives you complete control over your OEM Haldex system, allowing for switchable modes between Stock/FWD and 50/50. Choose your preferred method of operation—via the buttons on the module, an intuitive Android app, or a remote screen.
Key Features:
Full Control: Switch effortlessly between Stock/FWD and 50/50 settings.
Versatile Operation: Control the system through module buttons, an Android app, or a remote interface.
Front Bias: Please note that a front bias (50%) is always maintained due to the stock front gearbox—this is standard and cannot be altered with any Haldex controller.
Standalone Mode: Operate without CAN signals, perfect for custom conversions.
Upon purchase, you will receive a comprehensive installation guide via email. If you don't see it, don’t hesitate to reach out for assistance.
Installation Details:
The controller comes fully assembled, requiring only the final connection from the chassis to the module socket. Installation is straightforward and typically takes about 30 minutes, with all necessary pins included.
Transform your driving experience with the Gen1 Haldex Controller—where performance meets control.
The Forbes Automotive OpenHaldex T4 Controller gives you full control over the Haldex 4Motion system. 4 switchable modes.

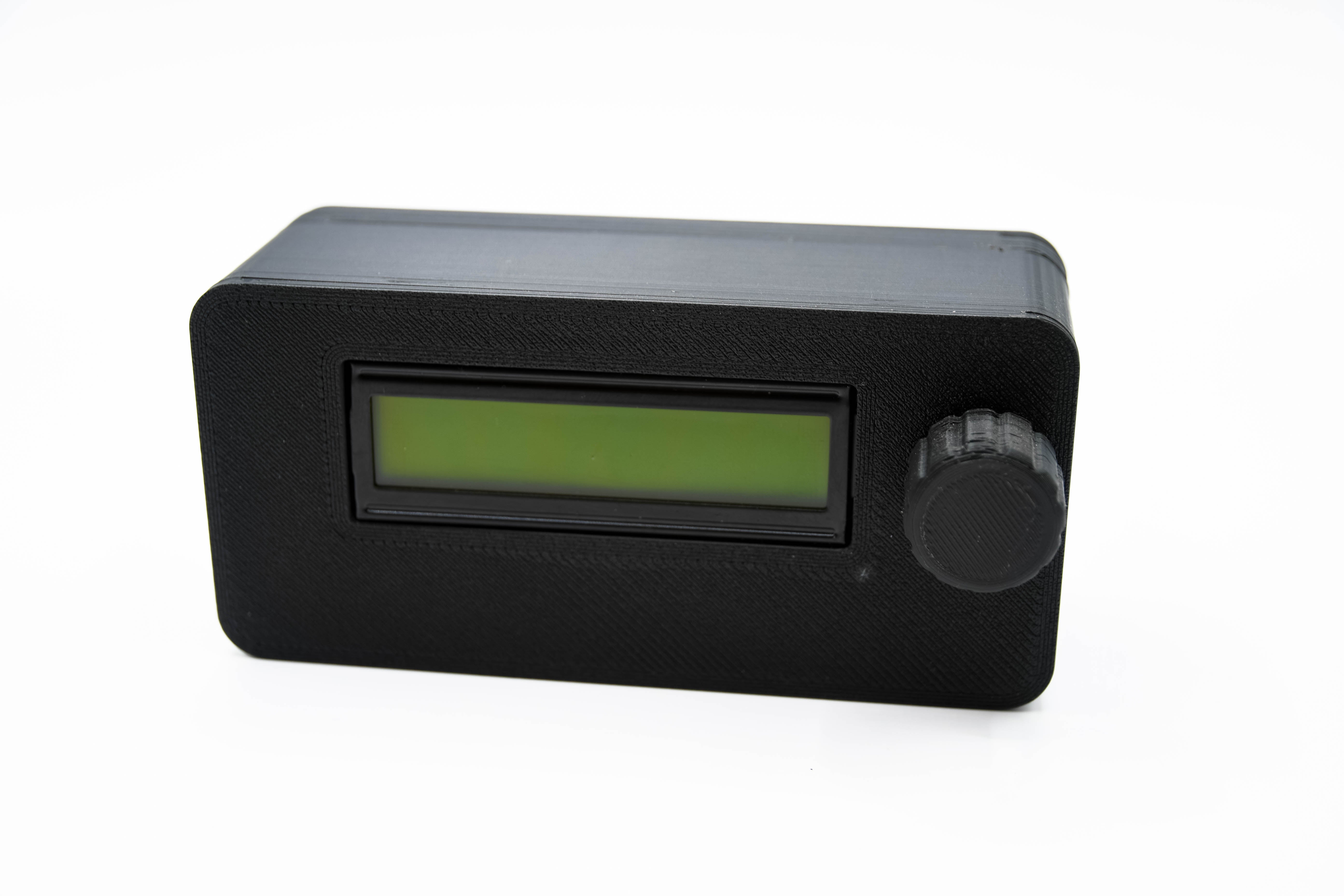

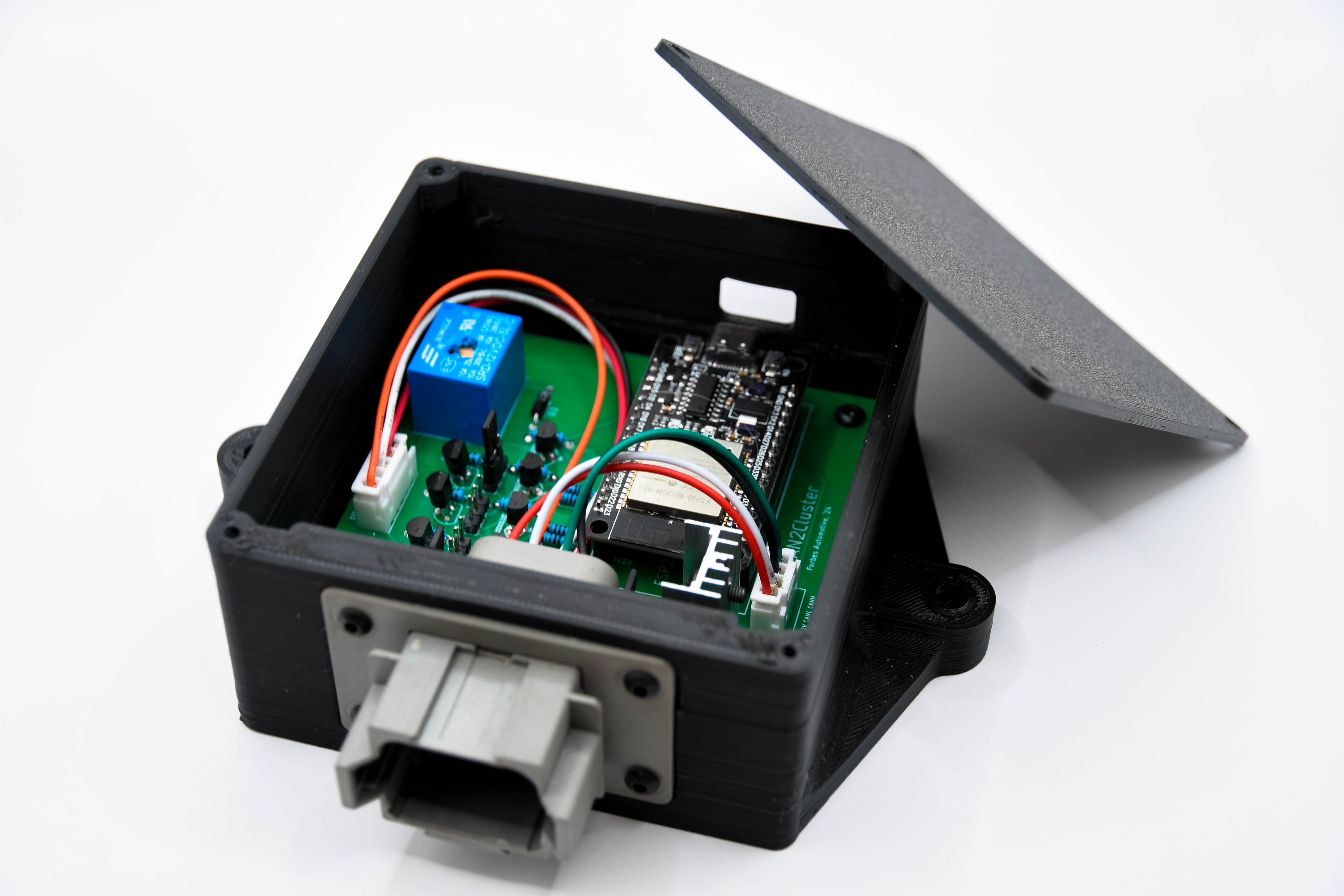

On 4motion cars, the Haldex system waits until it detects ‘slip’ from the front wheels at which point it engages the clutch-pack within the Haldex unit to drive the rear wheels. On high performance cars, it may be advantageous to force specific modes to suit the driving style required at the time. The OpenHaldex T4 controller is based on a Teensy 4.0 and is positioned between the ECU and the existing Gen1 Haldex module. It is Bluetooth enabled and can be controlled with push buttons on the device, an application on Android based phones (iOS coming soon) as well as a remote Bluetooth screen*.
The OpenHaldex module takes the existing CAN-BUS signals coming from the ECU to the OEM Haldex module and adjusts them to suit the required mode. There is a standalone mode which means that the OpenHaldex module can be used on conversions or cars without working CAN-BUS. This will mimic OEM CAN-BUS signals to the Haldex pump to allow it to operate as if there was an original ECU in place.
Modes available:
Stock (*if provided with OEM CAN signals)
FWD
50/50
Custom (*if provided with OEM CAN signals)

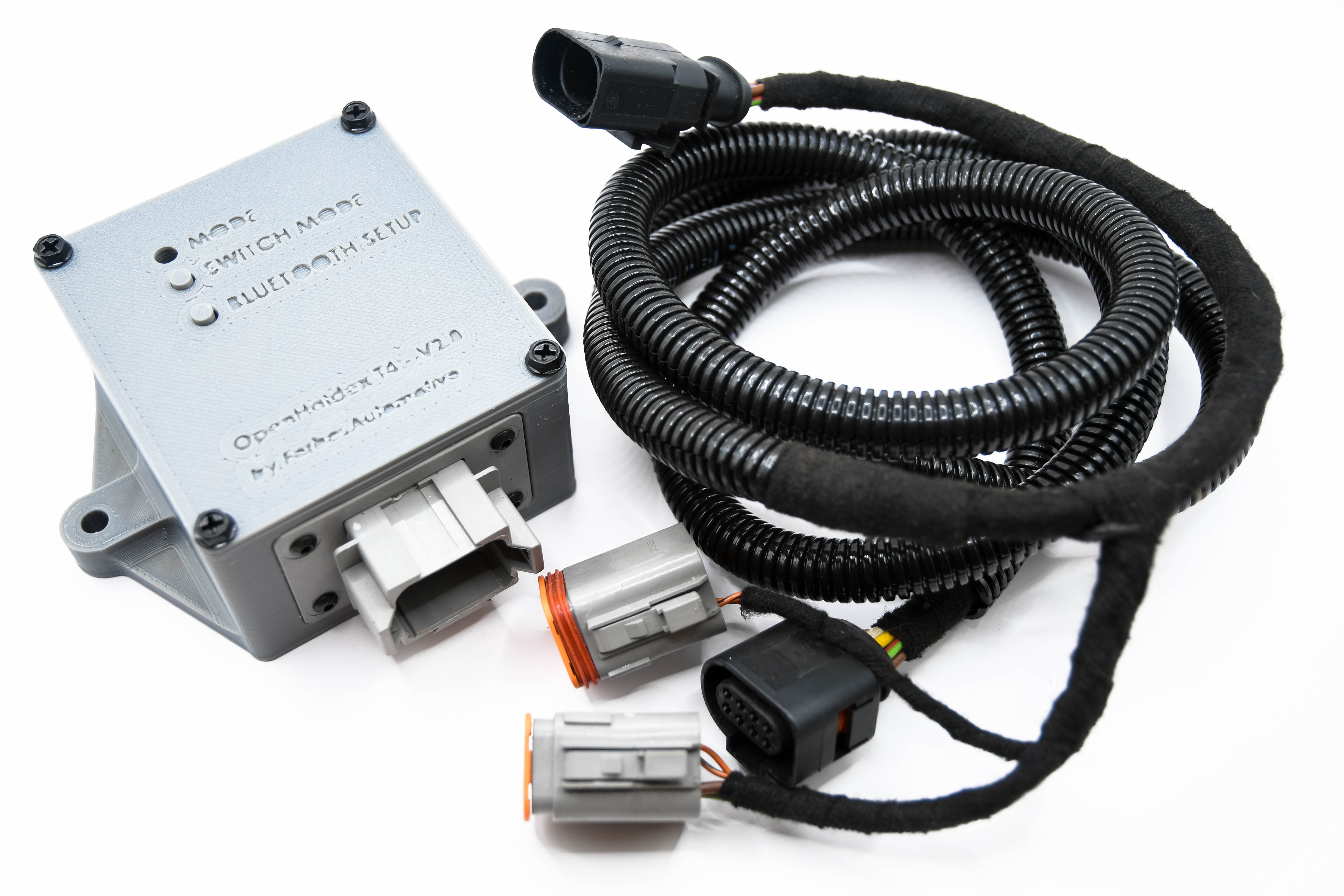

An optional Plug & Play harness is available. This allows the utilisation of the OEM plugs which means the module can be removed at any time! Click here for more information.
